- CE-marking in accordance with EN 1504-3 and EN 13813
- concrete repair in accordance with ZTV-ING part 3
- restoration of impermeability to fluids of concrete constructions in facilities for storage, bottling or processing liquids hazardous to water
- reduces the penetration of CO2
- construction material A1 (non -flammable) in accordance with DIN EN 13501

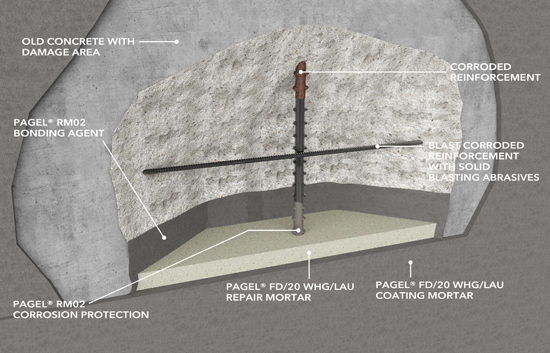

- RM02: corrosion protection and bonding bridge
FD20 WHG/LAU-mortar
ready-to-use repair mortar for facilities for storing, bottling and processing liquids hazardous to water in accordance to ZTV-ING part 3, section 4, DAfStb directive SIB M3 und DIN EN 1504-3 for structurally relevant purposes
- granularity: 0-2 mm
- layer thickness: 10-50 mm
- consumption: 1,85 kg/(m²⋅mm)
- processing time at 20°C (68 °F): about 45 min
- compressive strength after 28 d: ≥ 50 N/mm²
Produkteigenschaften
- ready-to-use (just mix with water) repair mortar suitable for facilities containig or processing substances hazardous to water
- reduces the penetration of CO2 and humidity (anti-carbonation), to great extent oil and water resistant, at the same time provided with large reserves of alkali, actively protecting the reinforcement against corrosion
- soft plastic processing texture and very good firmness on vertical and horizontal surfaces, also overhead
- allows vapour diffusion
- high frost and de-icing salt resistance
- supplied as system comprising the following components:
- RM02 corrosion protection and bonding bridge
- FD/20 WHG/LAU Mortar
Anwendungsgebiete
- restoration of the impermeability to liquids in concrete facilities which store, bottle or process stationary liquids hazardous to water and to concrete, up to 144 hours
- mortar system for protection against liquids hazardous to water, for determined construction thicknesses, for indoor and outdoor uses
- suitable for traffic areas (pneumatic and vulkollan tyres)
- structural and non-structural restoration of civil engineer facilities for storage, bottling and processing liquids hazardous to water classified as "medium"
- Restoration of impermeability of concrete to hazardous liquids hazardous to water, for instance in refuelling and defuelling petrol stations, for motor, rail, water and air vehicles
