FD/20 Mortero para instalaciones de protección hídrica para almacenamiento, trasvase y manipulación de materiales (WHG/LAU)

ready-to-use repair mortar for facilities for storing, bottling and processing liquids hazardous to water in accordance to ZTV-ING part 3, section 4, DAfStb directive SIB M3 und DIN EN 1504-3 for structurally relevant purposes

  • concrete repair in accordance with ZTV-ING part 3
  • restoration of impermeability to fluids of concrete constructions in facilities for storage, bottling or processing liquids hazardous to water
  • reduces the penetration of CO2
  • construction material A1 (non -flammable) in accordance with DIN EN 13501

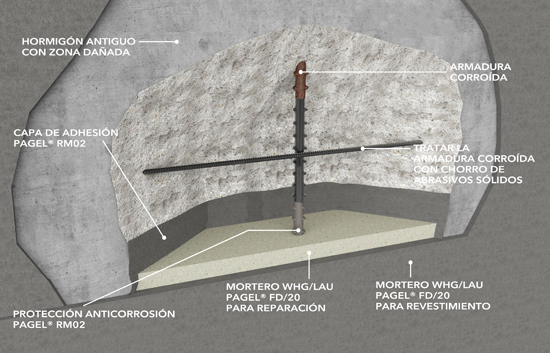

  • RM02: corrosion protection and bonding bridge
  • granularity: 0-2 mm
  • layer thickness: 10-50 mm
  • consumption: 1,85 kg/(m²⋅mm)
  • processing time at 20°C (68 °F): about 45 min
  • pressure resistance after 28 d: ≥ 50 N/mm²
Marca CEQDB Certificado de conformidad DAfStb/VeBMR
FD/20

Solicitar certificados de prueba

Si necesita más certificados de prueba, no dude en ponerse en contacto con nosotros.
Tel. +49 201 685040
Correo electrónico: pruefzeugnisse@pagel.de

Introduce tu nombre, por favor.
Introduce un asunto, por favor.
Introduce un teléfono válido, por favor.
Escribe un mensaje, por favor.

Sí, tengo conocimiento de la declaración sobre protección de datos y estoy de acuerdo con el la recopilación y guardado electrónicos de los datos que doy. Mis datos se usarán sólo y estrictamente para el procesamiento y la respuesta de mi solicitud. Sí, consentimiento de tratamiento de datos emitido!

Debes aceptar los Términos y condiciones.

Características del producto

  • ready-to-use (just mix with water) repair mortar suitable for facilities containig or processing substances hazardous to water
  • reduces the penetration of CO2 and humidity (anti-carbonation), to great extent oil and water resistant, at the same time provided with large reserves of alkali, actively protecting the reinforcement against corrosion
  • soft plastic processing texture and very good firmness on vertical and horizontal surfaces, also overhead
  • allows vapour diffusion
  • high frost and de-icing salt resistance
  • supplied as system comprising the following components:

Áreas de aplicación

  • restoration of the impermeability to liquids in concrete facilities which store, bottle or process stationary liquids hazardous to water and to concrete, up to 144 hours
  • mortar system for protection against liquids hazardous to water, for determined construction thicknesses, for indoor and outdoor uses
  • suitable for traffic areas (pneumatic and vulkollan tyres)
  • structural and non-structural restoration of civil engineer facilities for storage, bottling and processing liquids hazardous to water classified as "medium"
  • Restoration of impermeability of concrete to hazardous liquids hazardous to water, for instance in refuelling and defuelling petrol stations, for motor, rail, water and air vehicles
