- CE-marking in accordance with EN 1504-6
- certificate of compliance in accordance to VeBMR
- high-strength grout
- pumpable
- low w/c ratio
- high early strength after 24 h and high final strength
- cement-based
HF50 high-strength grout (C100/115)
highly flowable swelling grouting concrete with very high initial and final strength in accordance with the DAfStb VeBMR directive
- granularity: 0-5 mm
- grouting height: 20-120 (300) mm
- consumption: 2.200 kg/m³
- processing time at 20°C (68 °F): about 90 min
- expansion after 24 h: ≥ 0,1 %
- compressive strength after 28 d: ≥ 115 N/mm²
properties
- high strength after 24 hours and high final strength
- pumpable over long distances and easy to process
- microsilica additives
- sedimentation stability
- controlled swelling
- satisfies the requirements of the type A1 construction materials (non-flammable) according to the ruling 2000/605/EG of the European Commission, September 26th 2000 (published in official journal, L258)
classification according to VeBMR
- flowability class: a2
- shrinkage class: SKVB 0
- early strength class: A
- compressive strength class: C100/115
fields of application

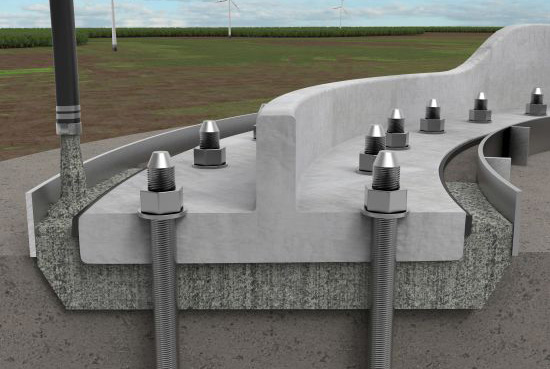

- grout for wind turbines
- jointing mortar
- grouting of prefabricated parts
- turbines, generators, compressors, diesel engines, machine systems and components that are exposed to high dynamic loads
- paper, chemical and refinery plants
