SM20 sprayable mortar (SPCC)

SPCC concrete substitution system in accordance to ZTV-ING part 3, section 4, DAfStb directive SIB M2 as well as directive IH and EN 1504-3 for structurally non-relevant purposes

  • concrete restoration in accordance to DIN EN 1504-3
  • ready-to-use restoration mortar
  • reduces the penetration of CO2
  • Construction material class A1 (non flammable) in accordance to DIN 4102-1 and EN 13501
  • RM02: corrosion protection and bonding bridge
  • granularity: 0-2 mm
  • layer thickness: 10-50 mm
  • consumption: 1,85 kg/(m²⋅mm)
  • processing time at 20°C (68 °F): about 45 min
  • pressure resistance after 28 d: ≥ 50 N/mm²
CE marking
SM20

Request test certificates

If you need further test certificates, please do not hesitate to contact us.
Tel. +49 201 685040
Email: pruefzeugnisse@pagel.de

Please enter your name.
Please enter a subject.
Please enter a valid phone number.
Please enter a message.

I have read the data protection declaration and I consent to the data I have provided being electronically collected and stored. My data is used only strictly for the processing and answering of my request.

You must accept the Terms and Conditions.

properties

  • ready-to-use repairing mortar, needs only to be mixed with water
  • reduces the penetration of CO2 and humidity (anti-carbonation), to great extent impermeable to oil and water, at the same time provided with large reserves of alkali, active protecting the reinforcement against corrosion, and resistant to saponification
  • soft plastic consistence while processing with dense-flow wet-spraying method and very good firmness in vertical and overhead surfaces
  • supplied as system comprising the following components:
  • RM02 CORROSION PROTECTION AND BONDING BRIDGE
  • SM20 SPRAYED MORTAR (SPCC) (0-2,0 mm)
  • MS05 PCC FILLER / PUTTY (0-0,5 mm)

fields of application

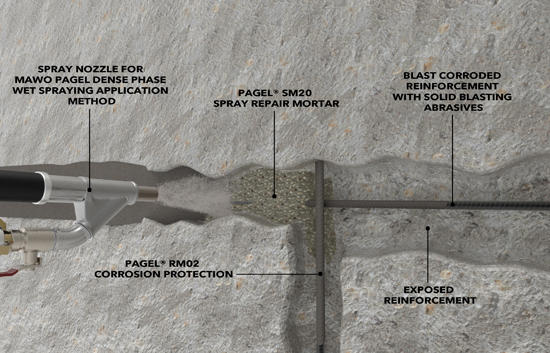

  • concrete repair, reinforced concrete and pre-stressed concrete in the MAWO-PAGEL DENSE-FLOW WET-SPRAYING PROCESS in bridges and civil-engineering structures
  • repair pillars damaged by chloride in parking houses and underground garages in the MAWO-PAGEL DENSE-FLOW WET-SPRAYING PROCESS
  • increasing of the coating of the reinforcement of concrete, for improving the fire resistance (material class A1, non-flammable)
